Introduction to WebGL

Alberto Alonso Ruibal
GDG Vigo, September 2012

Mobialia

Since 2010
Apps: Mobialia Chess, RBKube, Connect-4, Gas-Stations Spain...
Focused on Android, but we have some WebGL Apps

Founders:

@albertoruibal (Galicia)
@ibancg (The NetherLands)

http://www.mobialia.com

Why WebGL?

Advanced Graphics in the browser
Direct Access to the GPU: acceleration
Javascript API
Plugin-free

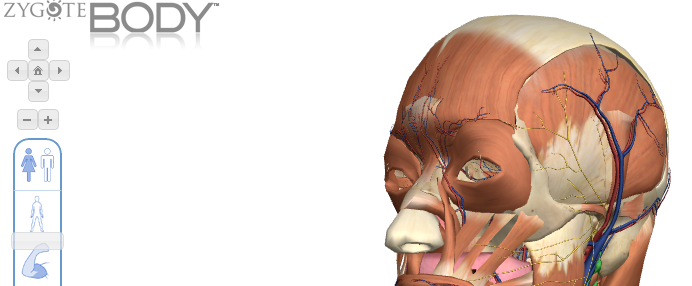

Not only games: Zygote Body, 3D Maps...

The Standard

Khronos Group
Participating: Apple, Google, Mozilla, Opera...
WebGL 1.0: March 2011
Based on OpenGL ES 2.0

Browser Support

Desktop browsers: Chrome, Firefox, Safari, Opera...
Where are you Microsoft? (IEWebGL Plugin)
Mobile Browsers: Firefox for Mobile (Nightly), Opera Mobile 12, Playbook...
IOS? iAd webviews support WebGL

Security

Direct Access to GPU Hardware
Disabled by default in Safari
Microsoft campaigns against WebGL :D

Getting a WebGL context

We need a canvas:

 <canvas id="mycanvas"></canvas>

And then we get the GL context:

 var canvas = document.getElementById("mycanvas");
 var gl = canvas.getContext("experimental-webgl");
 gl.viewportWidth = canvas.width;
 gl.viewportHeight = canvas.height;

Initializing

After getting a GL context we need to set some parameters:

 gl.clearColor(0.0, 0.0, 0.0, 1.0);
 gl.clearDepth(1.0);
 gl.enable(gl.DEPTH_TEST);
 gl.depthFunc(gl.LEQUAL);

 // For transparency
 gl.enable(gl.BLEND);
 gl.blendFunc(gl.SRC_ALPHA, gl.ONE_MINUS_SRC_ALPHA);

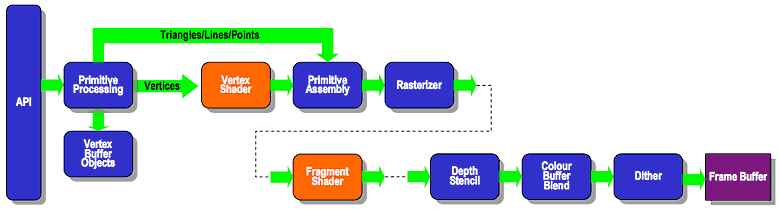

Shaders

Programs in "GLSL ES"="ESSL" Shading language compiled into GPU microcode

Vextex Shader: calculate vertex position and return it in gl_position
Fragment Shader: calculate point color and return it in gl_FragColor

GLSL

Data types:

Simple: float, double, bool, int, uint
Vectors: vec2, vec3, vec
Matrices: mat2, mat3, mat4
For textures: sampler2D, samplerCube...

Modifiers (pass values):

Attribute: JS-> Vertex Shaders (applied to individual vertices)
Uniform: JS-> Shaders (frame)
Varying: Vertex -> Fragment shaders

Simple vertex shader

 attribute vec3 aVertexPosition;
 attribute vec2 aTextureCoord;
 uniform mat4 uMVMatrix;
 uniform mat4 uPMatrix;
 varying vec2 vTextureCoord;
 void main(void) {
  gl_Position = uPMatrix * uMVMatrix *
                vec4(aVertexPosition, 1.0);
  vTextureCoord = aTextureCoord;
 }

Simple fragment shader

 precision mediump float;
 varying vec2 vTextureCoord;
 uniform sampler2D uSampler;

 void main(void) {
   gl_FragColor = texture2D(uSampler,
                            vec2(vTextureCoord.s, vTextureCoord.t));
 }

Uploading shaders

 var vertexShader = gl.createShader(gl.VERTEX_SHADER);
 gl.shaderSource(shader, source);
 gl.compileShader(shader);
 //...
 var shaderProgram = gl.createProgram();
 gl.attachShader(shaderProgram, vertexShader);
 gl.attachShader(shaderProgram, fragmentShader);
 gl.linkProgram(shaderProgram);
 gl.useProgram(shaderProgram);

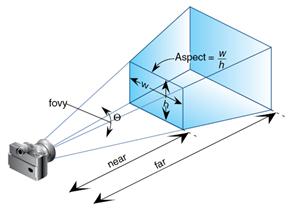

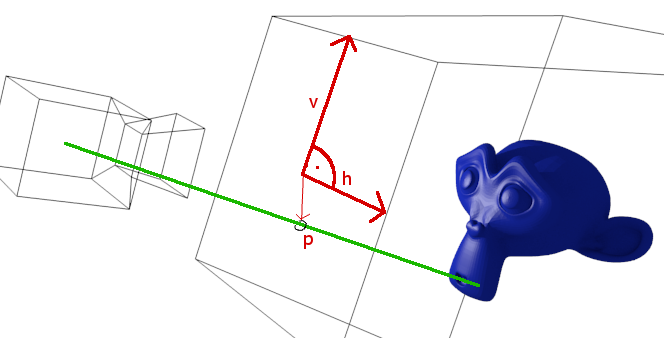

Camera

Defined by: fov, near, far, position, target and upaxis
Represented by two matrices:

Perspective Matrix (Frustrum): used to calculate perspective deformation
Lookat Matrix: with position, target and upaxis

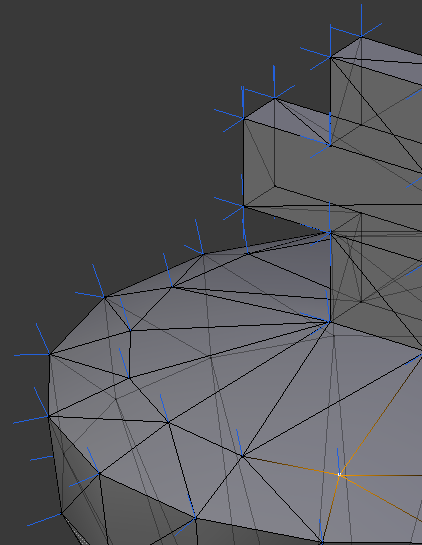

3D models

Defined by:

Vertex
Normals
Faces
UVs

Four JS arrays, must be uploaded to GPU Vertex Buffer Objects (VBOs)

Drawing

1) Upload VBOs to GPU

 vertexBuffer = gl.createBuffer();
 gl.bindBuffer(gl.ARRAY_BUFFER, vertexBuffer);
 gl.bufferData(gl.ARRAY_BUFFER,
               new Float32Array(vertices), gl.STATIC_DRAW);

2) Draw on each frame:

  gl.bindBuffer(gl.ARRAY_BUFFER, vertexBuffer);
 gl.vertexAttribPointer(shaderProgram.vertexPositionAttribute,
    vertexBuffer.itemSize, gl.FLOAT, false, 0, 0);
 gl.drawElements(gl.TRIANGLES,
    cubeVertexIndexBuffer.numItems, gl.UNSIGNED_SHORT, 0);

Textures

 texture = gl.createTexture();
 texture.image = new Image();

On image load, upload the texture to GPU:

 gl.bindTexture(gl.TEXTURE_2D, texture);
 gl.texImage2D(gl.TEXTURE_2D, 0, gl.RGBA, gl.RGBA,
    gl.UNSIGNED_BYTE, texture.image);
 gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_MAG_FILTER,
    gl.NEAREST);
 gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_MIN_FILTER,
    gl.NEAREST);
 gl.bindTexture(gl.TEXTURE_2D, null);
